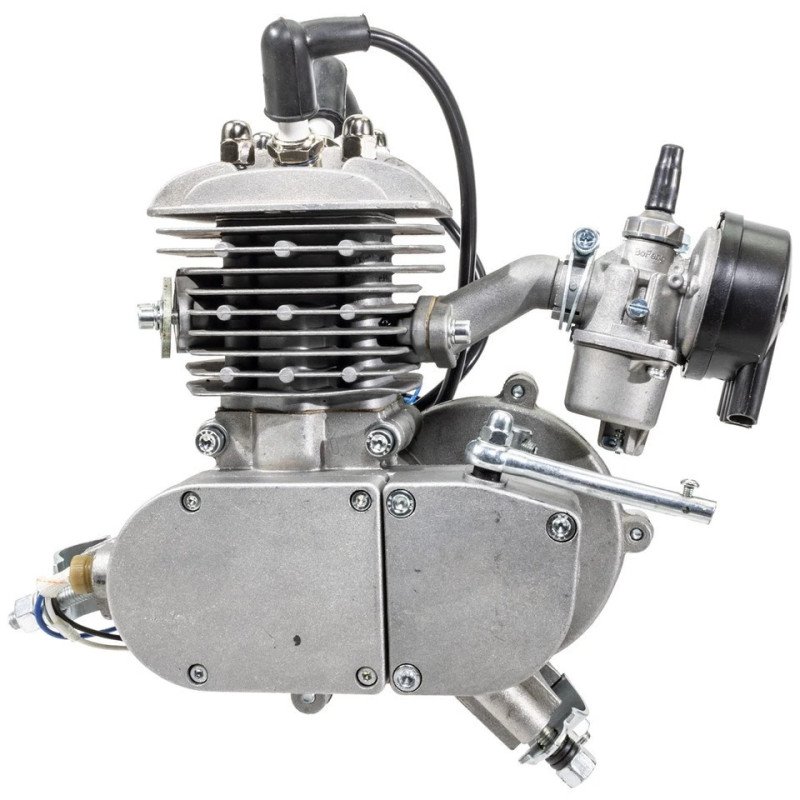

Zeda 80 Pro - Complete 47mm Bore 2 Stroke Motorized Bicycle Engine Kit 80cc

Specs as follows:

* 2.2Kw (2.95 HP)of net power @ 6,000 r.p.m.

* Bore:47mm; Stroke: 40mm

* 10.5 Kg (net weight)

* 120 Kg max load capacity

* Top speed 50 - 56 km/h (depending on final set up)

Dual spark head can improve starting and keep your engine running in the event that one spark plug fails, making it ideal for riders seeking dependability!

Zeda 80 Complete Engine Kit Includes:

• Twin Spark Cylinder Head
• Open transfer ports
• Zeda80 Pro 2.95 HP 2 stroke Engine
• Type B piston (high wrist pin)
• Long connecting rod ZL40MM (89mm)
• Stuffed crank case with corrosion resistant pearl coating
• Upgraded Magneto
• Improved large intake port (40mm bolt hole width)
• Improved large exhaust port
• Better balanced crank
• Upgraded bearings / 60% thicker crank case around bearings
• Larger 8mm x 1.25 engine mount studs
• 2 x Spark plug
• Chain guard
• Chrome muffler (longer angle)
• Ball bearing chain idler
• Push button clutch lever
• 415 Heavy duty chain
• CDI Upgrade Black & Red Ignition Dual Spark Plug Boot
• Black Teardrop gas tank (2 L)
• Updated NT racing carburetor with intake o-ring seal
• 9 hole rear drive sprocket
• Twist throttle with kill switch - incl. throttle cable and matching left grip
• Dimensions: 9" x 9" x 5"

Mounting Kit & Accessories

• Fuel tank w/fuel cap, fuel valve, inline fuel filter, and fuel line
• 415 Heavy duty chain, chain guard, and ball bearing chain tensioner
• Standard muffler
• Throttle assembly w/gooseneck style throttle cable
• Quick release push button clutch lever
• Large front mount for bicycles that have large down tubes
• Standard 36 or 44 tooth rear sprocket and sprocket installation kit
• Spark plug wrench and gear-puller tool

IMPORTANT (Please read):

1.      In order to create a suitable steal on the intake and stop any air leaks, please do not remove the plastic insert or o-ring that comes with your carburator.

2.      To prevent exhaust from snapping at welds, use the exhaust strapping kit that some kits come with if necessary. Alternatively, you can purchase a JB Weld Metal Strapping Kit.

3.      To prolong the life of these components, it is advised to clean and regrease the clutch arm, bucking bar, and bevel gear every few weeks.

4.      Fuel/Oil Ratio recommend by manufacturer: New Engine (500km or approx 3-5 tanks): 20:1 or 50ml of oil per litre. After Break In: 25:1 or 40ml of oil per litre.

Using a different oil ratio than what is advised may speed up engine wear and cause engine seize. Don't assume the ratios instead, use a two-stroke mixing container to measure the oil. Our engine kits come with a 30-day warranty from the date of delivery. If you use a different oil mix ratio, this warranty will be void.
