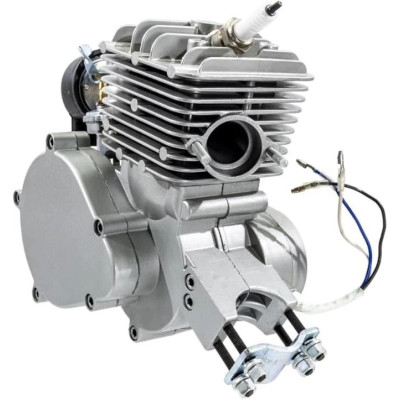

BT100 SS - Complete 50mm Bore 2 Stroke Motorized Bicycle Engine Kit 100cc

Specs as follows:

* approx. 78.6 cc actual displacement.

* ~2.24Kw (3 HP+) of net power @ 8,000 r.p.m.

* Bore:50mm; Stroke: 40mm

* 12 Kg (net weight)

* 120 Kg max load capacity

* Top speed 50 – 56+ km/h (depending on final set up)

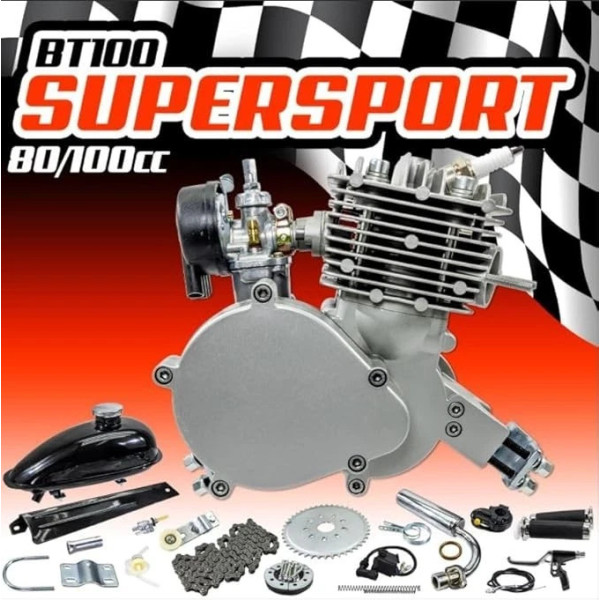

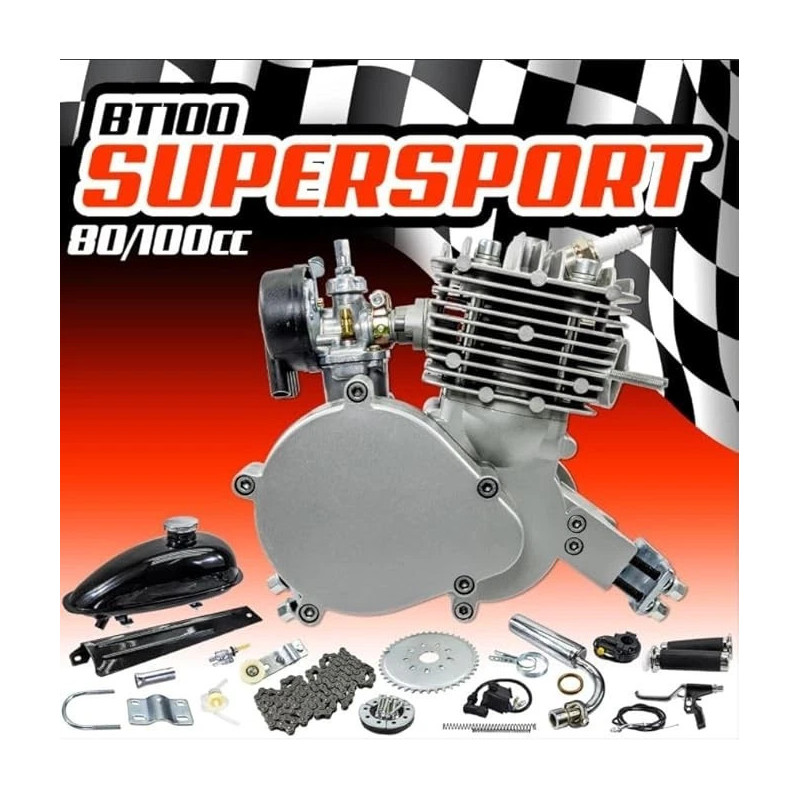

BT100 Super Sport Complete Engine Kit Includes:

• Open transfer ports

• BT100 SS 3+ HP 2 stroke Engine

• Type B piston (high wrist pin)

• Long connecting (89mm)

• Silver metallic enamel finish

• Upgraded Magneto

• Improved Large exhaust port with copper gasket

• Better balanced crank

• Upgraded bearings / 60% thicker crank case around bearings

• Quad 6mm x 1.25 engine mount studs

• Spark plug

• Chain guard

• Chrome muffler (longer angle)

• Ball bearing chain idler

• Push button clutch lever

• 415 Heavy duty chain

• CDI Ignition

• Black Teardrop gas tank (2 L)

• Updated NT racing carburetor with intake o-ring seal

• 9 hole rear drive sprocket

• Twist throttle with kill switch - incl. throttle cable and matching left grip

• Dimensions: 9" x 9" x 5"

Mounting Kit & Accessories

• Fuel tank w/fuel cap, fuel valve, inline fuel filter, and fuel line

• 415 Heavy duty chain, chain guard, and ball bearing chain tensioner

• Standard muffler

• Throttle assembly w/gooseneck style throttle cable

• Quick release push button clutch lever

• Large front mount for bicycles that have large down tubes

• Standard 36 or 44 tooth rear sprocket and sprocket installation kit

• Spark plug wrench and gear-puller tool

IMPORTANT (Please read):

1.      In order to create a suitable steal on the intake and stop any air leaks, please do not remove the plastic insert or o-ring that comes with your carburator.

2.      An exhaust strapping kit will be included with every engine kit. Please use this to avoid exhaust snapping at welds alternatively, you can use a JB Weld Metal Strapping Kit.

3.      To prolong the life of these components, it is advised to clean and regrease the clutch arm, bucking bar, and bevel gear every few weeks.

4.      Fuel/Oil Ratio recommend by manufacturer: New Engine (500km or approx 3-5 tanks): 20:1 or 50ml of oil per litre. After Break In: 25:1 or 40ml of oil per litre.

Using a different oil ratio than what is advised may speed up engine wear and cause engine seize. Don't assume the ratios instead, use a two-stroke mixing container to measure the oil. Our engine kits come with a 30-day warranty from the date of delivery. If you use a different oil mix ratio, this warranty will be void.
